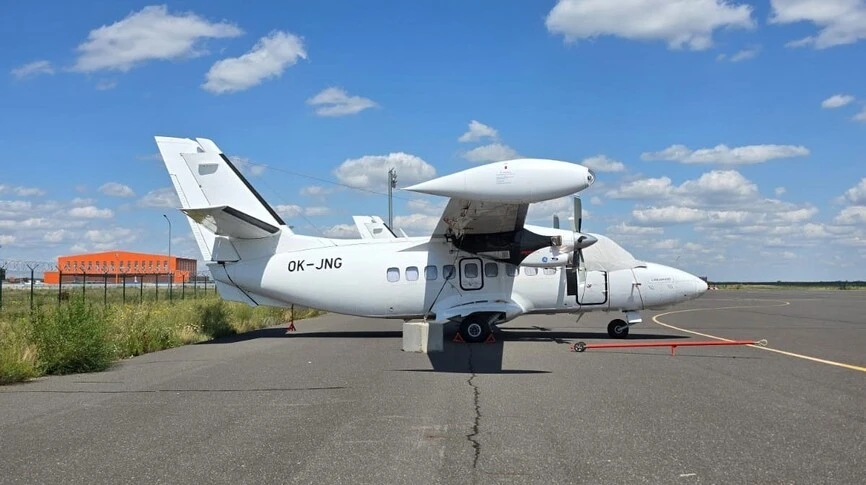

2022 LET L-410 UVP-E20 for sale, Kazakhstan

AIRFRAME: Time Since New (TTSN): up to 35 flight hours Landings Since New (TLSN): up to 40 ENGINES Engines: GE H80-200 (TBO 3,600 FH / 6,600 cycles) - Take-off rating (shaft output): 597 kW / 800 SHP - Max continuous rating (shaft output): 522 kW / 700 SHP - Continuous OEI Power (shaft output): 597 kW / 800 SHP - Dry weight: 201.2 kg / 443.6 lb Propellers: AVIA AV-725 (TBO 3,600 FH) - Number of blades: 5 - Diameter: 2.3 m / 7.546 ft - Sense of rotation: Clockwise - Speed (take-off power): 2,080 RPM - Weight: 77 kg / 169.8 lb WEIGHTS Maximum take-off weight: 6,600 kg / 14,550 lb Maximum landing weight: 6,400 kg / 14,109 lb Maximum fuel weight: 1,000 kg / 2,205 lb (with wingtip tanks): 1,300 kg / 2,866 lb Dimensions Wingspan (with wingtip tanks): 19.980 m / 65.55 ft Length: 14.424 m / 47.32 ft Height: 5.829 m / 19.12 ft Wing area: 34.86 sq. m / 375.23 sq. ft Maximum cabin diameter: 1.95 m / 6.40 ft Maximum cabin height: 1.66 m / 5.45 ft Passenger cabin volume: 17.90 cu m / 632 cu ft Seat pitch: 0.76 m / 29.94 in Entrance door: 0.80 x 1.46 m / 2.6 x 4.8 ft Cargo door: 1.25 x 1.46 m / 4.1 x 4.8 ft PERFORMANCE (ISA conditions, MTOW = 6,600 kg) Maximum speed (TAS) at 10,000 ft: 405 km/h / 219 knots Maximum operating flight level: 4,200 m / 14,000 ft Maximum range (45 min holding, wingtip tanks, H = 10,000 ft, ISA + 15°C): 1,520 km / 820 NM

- ESI-2000 ESIS with MAG 3100: 1 set - Magnetic Compass (5 LUN 1224-8): 1 set - Torque Indicators (LUN 1539.20-8): 2 sets - Gas Generator RPM Indicators (LUN 1347.93-8): 2 sets - Propeller RPM Indicators (LUN 1348.93-8): 2 sets - ITT Indicators (LUN 1370.16-8): 2 sets - Three-pointer Indicators (LUN 1538.01-8): 2 sets - Fuel Quantity Indicators (Main Tank, LUN 1634.01-8): 2 sets - Fuel Quantity Indicators (Wing Tip Tank, LUN 1674-8): 2 sets - Flowmeter Indicators (PC 900-1): 2 sets - Dual-pointer Air Thermometer (LUN 5610.01-8): 1 set - GROB BENZ 115EG7780 Clock: 2 sets

19 removable seats with headrests, fabric upholstery, Ultraleather side panels, and ceiling panel lining. VIP chemical-type toilet.

According to customer scheme, exterior markings in English/Russian

BASIC SET OF GROUND SUPPORT EQUIPMENT Delivered with L 410 UVP-E20 Aircraft: 1. Left Exhaust Cover (non-metallic): 2 pcs (P/N: B598732L) 2. Right Exhaust Cover (non-metallic): 2 pcs (P/N: B598732P) 3. Covers for Engine and Generator (non-metallic): 2 pcs (P/N: B598733N) 4. Bag for Non-metallic Covers: 1 pc (P/N: B598759N) 5. Wooden Wheel Blocks: 3 pcs (P/N: B596895N) 6. Propeller Blocking Element: 2 pcs (P/N: B596695N) 7. Pitot Cover: 2 pcs (P/N: B598919N) 8. Blind Flange for Static Pressure: 2 pcs (P/N: B953322N or L410M.9537) 9. Aileron Blocking Element: 4 pcs (P/N: B922150N or XL410.9220) 10. Steering Wheel Blocking Element: 1 pc (P/N: B596476N) 11. Rudder Blocking Element (25° deflection + H80): 1 pc (P/N: B098698N) 12. Toilet Ventilation Cover: 1 pc (P/N: B596420N) 13. Stall Speed Hole Plug: 1 pc (P/N: B097490N) 14. Stairs: 1 pc (P/N: B596281N) 15. Hand Towing Equipment: 1 pc (P/N: B952053N or L410.9521) 16. Anchor Device – Wing: 2 pcs (P/N: B598942N) 17. Anchor Device – Main Landing Gear: 2 pcs (P/N: B598950N) 18. Anchor Device – Nose Landing Gear: 1 pc (P/N: B598945N) 19. Hydraulic Jack: 1 pc (P/N: 95273992 / B599355N) 20. Extending Ladder (for transport): 1 pc (P/N: B598935N) 21. Universal Tools Kit: 1 pc (P/N: B598973N) 22. Document Bags: 7 pcs (P/N: B098515N) 23. Wing Tip LH: 1 pc (P/N: B524590L) 24. Wing Tip RH: 1 pc (P/N: B524590P) 25. Blinding Cap: 2 pcs (P/N: B098600N) 26. Mud Discharge Connection (WTT): 1 pc (P/N: B596560N) 27. Fuel Mud Removal Connection: 1 pc (P/N: B096591N) 28. Emergency Door Blocking Element: 3 pcs (P/N: B596575N) 29. Hydraulic Trolley Connection: 2 pcs (P/N: LUN 7743-7 / 95077437) 30. Hydraulic Trolley Connection: 1 pc (P/N: LUN 7744-7 / 95077447) 31. Special Tools Set: 1 set (P/N: B598625N incl. B598626N, B598627N, B598628N) 32. BOSE 6-pin to Dual G/A Cable Adapter (for A20): 1 pc (Ord. No. 47693) 33. Blinders: 4 pcs (P/N: 10 ONL 3996.4 / 32143410) TECHNICAL AND OPERATIONAL DOCUMENTATION Technical Documentation: - Airplane Log Book: 1 book - Engine Log Book: 2 books - Propeller Log Book: 2 books - Set of Aircraft Certificates (FAA, EASA, etc.): 5 folders - Leveling and Rigging Record: 1 set - Weight and Balance Record: 1 set - FDR Calibration Protocols: 1 set - Altimeter Calibration Protocol: 1 set - Flight Test Protocol: 1 set - Hose Book: 1 book - Safety Instructions: 1 set Operational Documentation: - Airplane Flight Manual for L 410 UVP-E20: 1 book - Emergency, Abnormal, and Normal Procedures Checklist: 1 book - Master Minimum Equipment List: 1 book - Maintenance Manual: 1 USB disc - Maintenance Schedule: 1 USB disc - Wiring Manual: 1 USB disc - H80-200 Engine Maintenance Manual: 1 USB disc - AV 725 Propeller Installation Manual: 1 USB disc - Ground and Flight Check Procedures: 1 USB disc - Illustrated Spare Parts Catalogue: 1 USB disc - Repair Manual: 1 USB disc - Production, Operation and Repair Tolerances Album: 1 USB disc - Pilot's Guides: 1 set - List of Performed Mandatory Bulletins: 1 set
